Cable Drum Power Rail Transfer Cart 250 Ton For Material Load

Product Categories
Xinxiang Hundred Percent Electrical and Mechanical Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Cable Drum Power Rail Transfer Cart 250 Ton For Material Load

Brand Name : BEFANBY

Model Number : KPJ-1-500t

Certification : CE,SGS,ISO9001

Place of Origin : Xinxiang City, Henan Province

MOQ : 1 SET

Payment Terms : L/C, T/T, Western Union

Supply Ability : 1000 sets one year

Delivery Time : 40-50 days as usual delivery,30-40days for urgent delivery

Packaging Details : The rail transfer cart will be packed by the tarp, the parts will be shipped in the high quality wooden case.

Shipment port : Qingdao, Tianjin, Shanghai

Material : Steel

Load capacity : 1-1500T, Customized 250 Ton

Cart size : Customized

Exported countries : Malaysia, Australia, South Africa, Mexico

Color : yellow, red, blue, gray, Customized

Application : Industrial field

Power supply : Cable Drum Power

Operation type : Hand pendant+Radio Control

Warranty : 24 months

Port : Qingdao/Tianjin/Shanghai

Running speed : 0-20m/min

Motor : AC motor

Contact Now

Malaysia Cable Drum Power Rail Transfer Cart 250 Ton For Sale

1. About BEFANBY Product

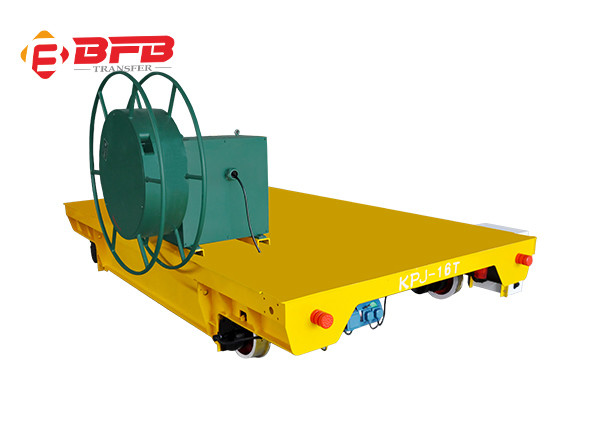

I. Working principle:The cable drum power rail transfer carts are powered by spring cable drums which generally installed at the bottom of the carts or one side of the rail transfer cart. The one side of AC 380V cable is connected with the power source and the other side is linked to the motor. The cable is wound around cable drum.

II. Main parts: Q235B cart frame, cast steel rail wheels, AC motor, Gear Reducer, Cable drum, Cable arranger, Electrical control box,Hand-held pendant, Remote Control, Alarm Light

Cable Drum Power Rail Transfer Cart 250 Ton For Material LoadCable Drum Power Rail Transfer Cart 250 Ton For Material Load

Cable Drum Power Rail Transfer Cart 250 Ton For Material Load

III. Product Manufacturing Processing

BEFANBY promise that quality is always the first concern, and BEFANBY specially set up a quality inspection department. Every time we complete a transfer carts, we must carry out strict quality control, including the appearance of electric transfer trolley, the operation of electric transfer trolley, etc.

Cable Drum Power Rail Transfer Cart 250 Ton For Material Load

IV. Technical parameter

Model KPJ 5T KPJ-45T KPJ-150T
Rated Load(t) 5T 45T 150T
Table Size(mm) 3500*2000*550 5500*2500*700 10000*3000*1200
Wheel Base(mm) 2600 4200 7000
Rail Gauge(mm) 1435 1435 2000
Wheel Diameter(mm) 300 500 600
Wheel Quantity 4 4 8
Ground Clearance(mm) 50 50 75
Running Speed(m/min) 20 20 20
Motor Power 1.5 5.5 15
Max Wheel Load(KN) 25.8 174 265.2
Reference Weight(t) 3.5 7.8 26.2
Recommended Rail Model P18 P43 QU100

If you are interrested in our product, pls contact us.

Thank you very much, and have a good time!

Cable Drum Power Rail Transfer Cart 250 Ton For Material Load

2. BEFANBY Company

Cable Drum Power Rail Transfer Cart 250 Ton For Material Load

Our customers from all over ther world, and BEFANBY product has exported to Thailand, Australia, Malaysia, Singapore, UAE, Saudi Arabia, South Korea, Mexico, etc.

Cable Drum Power Rail Transfer Cart 250 Ton For Material Load
